 OMSCHRIJVING |
|
Soundprojects SP3 15" Top speaker |
 Kenmerken |
|
|
 Toepassingen |
| Geschikt voor spraak en muziek versterking voor groepen tot 150 personen en een ruimte tot 100m². |
 Eigenschappen |
|
Afmetingen (LxBxH): 45cm x 50cm x 90cm Gewicht: 60 Kg Frequentiebereik: 80 - 20000 Hz Geluidsdruk: 135 dB Luidsprekers: 15" Vermogen: 1000 W |
 Ingangen |
 Uitgangen |
|
1x XLR |
1x XLR |
 Meegeleverd |
|
|
 Opmerkingen |
|
geen |
Electrical specifications
- Drivers: 12"/1"
- Transient output: 400W
- Amplifier(s): eta-max™ technology
- Crossover 4th order: 1600Hz
- Lowpass 4th order: -
- Filter subsonic: switch. 40/80Hz, 4th order
- Filter ultrasonic: 20.000Hz, 1st order
Protection
- S.A.L.C. (Single AudioLogic Control)
- Fast twin driver-relais turn on/off
- Transient (soft power-up)
- DC-voltage short-circuit
- LED status indication: power-on, protect,
filter subsonic switch
- Input impedance: 20 kOhms balanced,
10 kOhms unbalanced
- Output impedance: hard-wired to input
- Protection threshold: +4dBU
- Mains voltage: 230V (100V/110V optional)
+5%, -10%
- Mains frequency: 50/60 Hz
- Power cons. Idle: <20VA
- RMS Full load: 400VA
Acoustical specifications
- Max. SPL continuous: 123dB@1m
- Calculated peak/longterm: 126dB@1m
- Freq. response: switch.40/80-20.000Hz
- Coverage angle: 90 H, 40 V
SP2
Additional descriptive data
- Cabinet construction: crossgrain laminated multiplex
- Finish: non-reflective sturdy carpet
- Weight: 29 kg
- Size WxHxD in cm: 45x59x50 trapezoid
- Rigging points: Quick-Rig? , recessed stand adapter,
mounting bracket
- Audio connectors in: IEC XLR-3 (pin 2 hot)
- Main connectors: IEC 20
- Max. operating temp.: -10 to 40 C ambient
Applications
- Small theatre systems
- Houses of worship
- Conference amplification
- Live / Disco club
- Theatre stage monitoring
- Acoustic guitar amplification
Electrical specifications
- Drivers: 3x15"
- Transient output: 1400W
- Amplifier(s): 3x MA4-technology
- Crossover 4th order: -
- Low-pass 4th order: 80Hz
- Filter subsonic: 30Hz, 2nd order
- Filter ultrasonic: -
Protection
- D.A.L.C. (Double AudioLogic Control)
- Fast dual driver-relais turn on/off transient
(soft power-up)
- DC-voltage short-circuit
- LED status indication: power-on/D.A.L.C/
protect/signal-present
- Input impedance: 20 kOhms balanced,
10 kOhms unbalanced
- Output impedance: hard-wired to input
- Protection threshold: +4dBU
- Mains voltage: 230V (100V/110V optional)
+5%, -10%
- Mains frequency: 50/60 Hz
- Power cons. Idle: < 50VA
- RMS Full load: 1500VA
Acoustical specifications
- Max. SPL continuous: 132dB@1m
- Calculated peak/longterm: 135dB@1m
- Freq. response: 30-80Hz
- Coverage angle: 360 spherical
455
865
1355
SP3-15
Additional descriptive data
- Cabinet construction: crossgrain laminated
multiplex
- Finish: non reflective sturdy carpet
- Weight: 121kg
- Size WxHxD in cm: 45x135x86 rectangular
- Rigging points: -
- Audio connectors in: IEC XLR-3 (pin 2 hot)
- Main connectors: CEE
- Max. operating temp.: -10 to 40 C ambient
Applications
- Small theatre systems
- Large theatre systems
- Houses of worship
- Main PA arrays
- Concert soundreinforcement
- Live/Disco club
Electrical specifications
- Drivers: 2x12", 2"
- Transient output: 1000W
- Amplifier(s): 3x MA4-technology
- Crossover 4th order: 1600Hz
- Low-pass 4th order: -
- Filter subsonic: 80Hz, 4th order
- Filter ultrasonic: 20.000Hz 1st order
Protection
- D.A.L.C. (Double AudioLogic Control)
- Fast triple driver-relais turn on/off
- Transient (soft power-up)
- DC-voltage short-circuit
- LED status indication: power-on/D.A.L.C/
protect/signal-present
- Input impedance: 20 kOhms balanced,
10 kOhms unbalanced
- Output impedance: hard-wired to input
- Protection threshold: +4dBU
- Mains voltage: 230V (100V/110V optional)
+5%, -10%
- Mains frequency: 50/60 Hz
- Power cons. Idle: < 50VA
- RMS Full load: 1200VA
Acoustical specifications
- Max. SPL continuous: 130dB@1m
- Calculated peak/longterm: 135dB@1m
- Freq. response: 80-20.000Hz
- Coverage angle: 60 H, 40 V

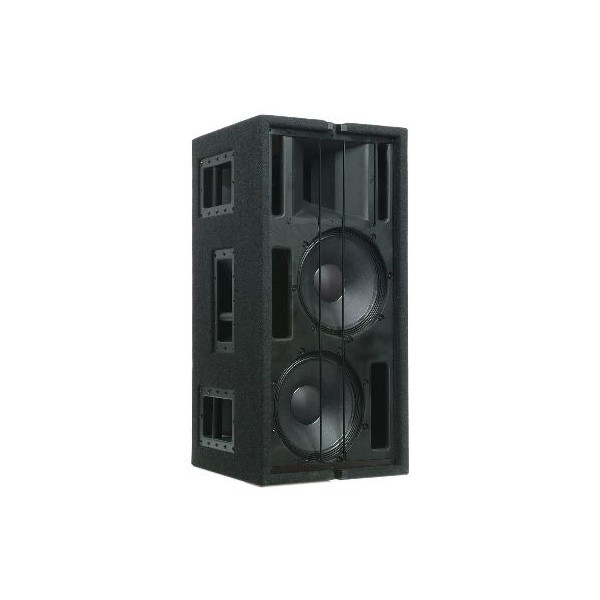

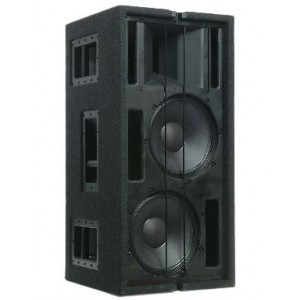

SP3-60
295 455
505
905
Additional descriptive data
- Cabinet construction: crossgrain laminated multiplex
- Finish: non-reflective sturdy carpet
- Weight: 60kg
- Size WxHxD in cm: 45x90x50 trapezoid
- Rigging points: Quick-Rig?
- Audio connectors in: IEC XLR-3 (pin 2 hot)
- Main connectors: CEE
- Max. operating temp.: -10 to 45 C ambient
Applications
- Small theatre systems
- Large theatre systems
- Houses of worship
- Concert soundreinforcement
- Live/Disco club
